PRECISION ROLLING ELEMENTS / DRAWING-SPECIFIC GEOMETRY

Cylindrical & Needle Rollers

Precision cylindrical and needle rollers for compact high-load bearings, gearboxes, automotive systems, linear guides and custom motion assemblies.

Request a Quote ↗Contact SDBALLS U.S.

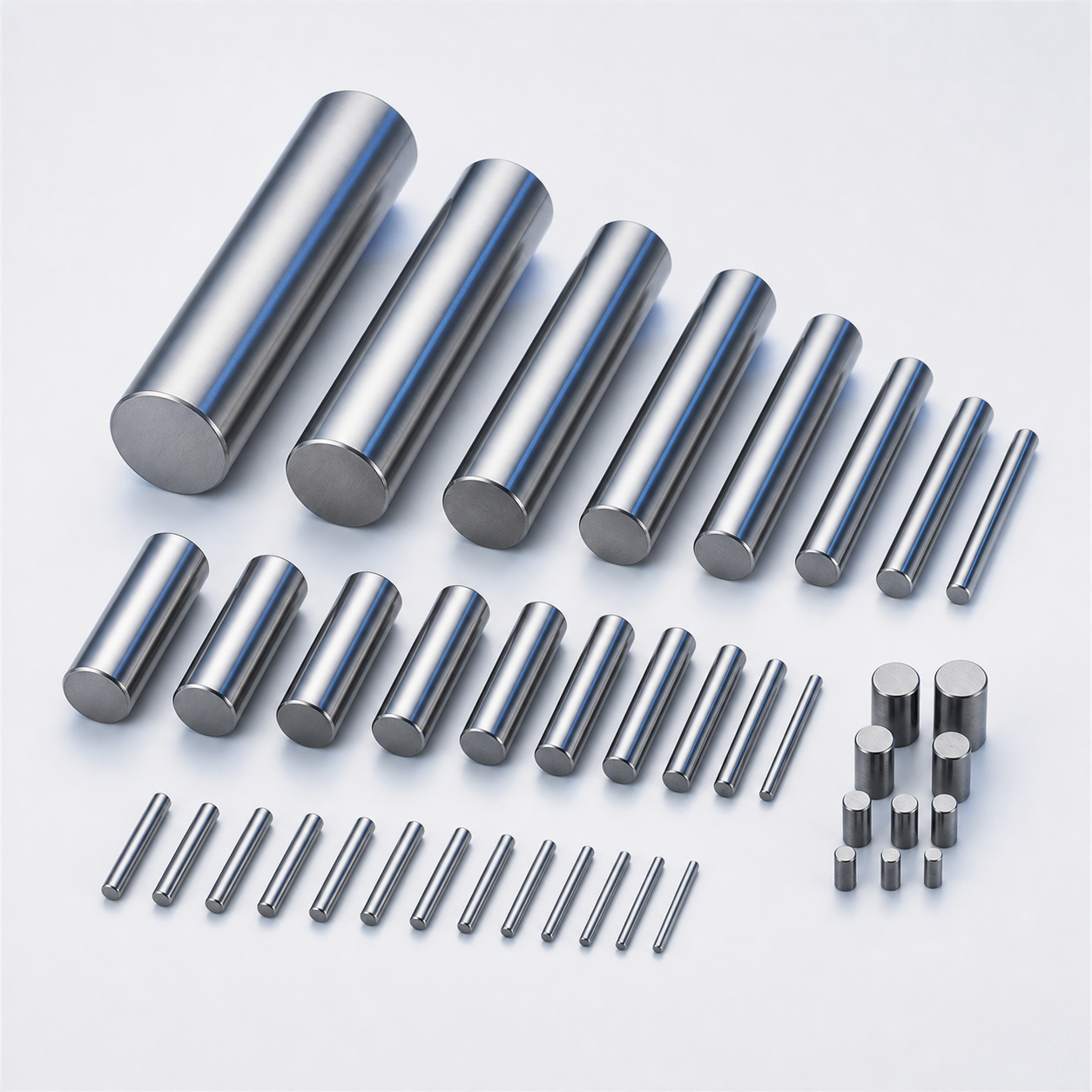

Cylindrical & Needle Rollers supplied by SDBALLS — PRODUCT REFERENCE / FINAL SPECIFICATION BY QUOTATION

PRODUCT OVERVIEW

What are cylindrical & needle rollers?

Cylindrical and needle rollers are line-contact rolling elements used where compact radial space and high load capacity are required. Needle rollers have a high length-to-diameter ratio, while cylindrical rollers cover broader diameter and end-form designs.

Diameter, length, cylindricity, circularity, end form, edge radius, hardness and surface finish all affect load distribution and bearing life. Rollers must be specified to the bearing design or controlled drawing.

TECHNICAL SPECIFICATIONS

Start with measurable requirements.

Values below are product-family references. The quotation, drawing, agreed standard and inspection plan control the final supply specification.

Technical itemReference specification

MaterialAISI 52100, 304, 316, 420C, 440C, Si₃N₄ or project-specific material

Diameter RangeDrawing-specific

Precision GradeISO / DIN / UNI class or customer drawing

ToleranceControlled by the agreed precision grade, drawing or purchase specification

HardnessMaterial and heat-treatment dependent; bearing steel commonly through hardened

DensityMaterial-grade dependent; confirm before quotation

Surface FinishGround, superfinished or application-specific roughness

Roundness / SphericityControlled according to the agreed precision grade and inspection method

Temperature ResistanceApplication, load, atmosphere and material-grade dependent

Chemical ResistanceConfirm exact fluid, concentration, temperature and exposure time

PackagingBulk, small-quantity, container, bag, carton, export pallet or customized packing

Diameter & lengthDrawing-specific metric and inch ranges

GeometryDiameter variation, circularity, cylindricity, straightness and length tolerance

End formsFlat, rounded, crowned, relieved, chamfered or custom profile

SortingDiameter and length sorting / grouping by agreed increment

InspectionDimensional report, profile, hardness, roughness and lot traceability

PRODUCT SELECTION GUIDANCE

Compare materials before substituting.

Material selection affects load, wear, corrosion, temperature, precision, service life and total program cost.

Material optionPrimary advantageLimitationBest fit

Needle rollerHighest compact radial load capacityAlignment and raceway requirementsAutomotive, transmissions and compact bearings

Cylindrical rollerHigh radial load and broad geometry optionsMore axial space than needle formsIndustrial bearings and gearboxes

BallLow friction and combined-load flexibilityLower radial capacity for the same envelopeHigh-speed general bearings

Ceramic rollerLow mass, insulation and corrosion optionsHigher cost and impact considerationsSpecial electrical and high-speed systems

KEY PERFORMANCE FEATURES

Performance that purchasing teams can verify.

High radial load density

Line contact carries substantial radial load within compact assemblies.

Controlled roller geometry

Cylindricity, crown and end profile distribute stress across the raceway.

Material flexibility

Bearing steel, stainless and ceramic options respond to corrosion, speed and electrical needs.

Precision sorting

Diameter and length grouping supports matched bearing and assembly programs.

TYPICAL APPLICATIONS

Specify the work the ball must perform.

Application names are starting points—not approval of universal suitability. Share the real medium, load, speed, pressure, temperature, life target and compliance needs.

Needle roller bearings

Compact bearings for transmissions, engines, tools and machinery.

Gearboxes & automotive

Planetary systems, universal joints, drivetrains and power transmission.

Linear motion

Crossed-roller, guide and high-load positioning assemblies.

Cam followers & burnishing

Profile contact, finishing and custom mechanical rollers.

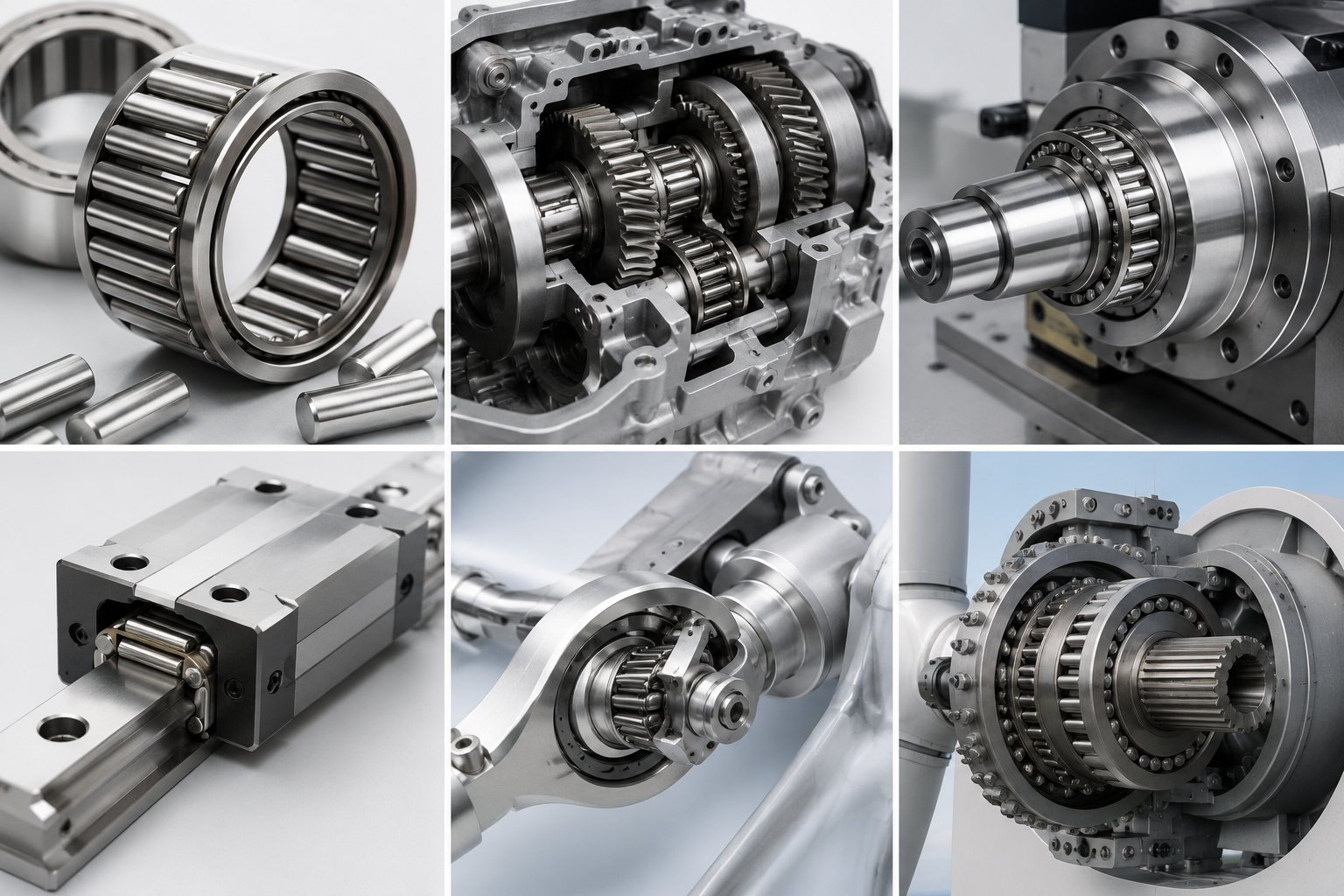

Typical applications for Cylindrical & Needle Rollers — REPRESENTATIVE APPLICATION ENVIRONMENTS

QUALITY & DOCUMENTATION

Build the evidence into the purchase order.

Document requirements should be defined before quotation so the inspection method, sampling level, traceability and external testing can be planned correctly.

Material identity or alloy / ceramic grade verified against the agreed purchase specification
Diameter, tolerance and geometry inspected using the method appropriate to the ordered precision level
Hardness, density, wall thickness or coating hardness tested when applicable to the product
Surface condition, finish and visual limits checked against approved samples or drawings
Roundness / sphericity or roller geometry inspected when specified
Lot identification and batch traceability maintained through controlled records
Material certificates and inspection reports available when agreed before quotation
Third-party testing, compliance documents and customer inspection plans supported by agreement

PACKAGING OPTIONS

Protect precision through delivery.

Final packing depends on material, diameter, surface sensitivity, order weight, storage time and destination.

Clean, rust-protected packing

Dry or lightly protected packing selected around material and storage conditions.

Counted trays & tubes

Separated or counted packing for precision rollers and assembly-line presentation.

Bulk industrial containers

Bags, cartons, pails or drums sized to prevent damaging movement and overload.

OEM line-side packing

Part-number labels, batch identification, returnable concepts and pallet plans by agreement.

Supported formats: bulk packaging · small-quantity packaging · plastic containers · bags · cartons · export pallets · customized packaging.

SMALL QUANTITY & SAMPLE ORDERS

Validate before you scale.

SDBALLS Industry Corp. supports North American customers with sample quantities, prototype requirements, testing programs and specialty ball inquiries.

Send the drawing, standard, material, heat treatment, diameter, length, crown/end form, sorting increment, load and annual quantity. Prototype lots support raceway and life testing.

PrototypeTestingRepairR&DSmall batch production

Request Samples ↗Contact U.S. Support

PRODUCT FAQ

Answers for engineering and purchasing teams.

What is the difference between a needle and cylindrical roller?

Needle rollers have a much higher length-to-diameter ratio and fit compact radial spaces; cylindrical rollers cover broader proportions and load designs.

Which dimensions are critical?

Diameter, length, circularity, cylindricity, straightness, end form, edge radius, hardness and roughness all affect load distribution.

Can rollers be diameter sorted?

Yes. Sorting increments and package identification should be specified with the bearing assembly plan.

Which standards can be supplied?

ISO, DIN, UNI and customer drawing requirements can be reviewed. The controlled drawing governs final acceptance.

Can you provide material certificates and inspection reports?

Yes. State the required certificate, inspection method, sampling plan and report format before quotation so documentation can be included in the supply plan.

Do you support samples and small-quantity orders?

Yes. SDBALLS Industry Corp. supports North American prototype, qualification, repair, R&D and small-batch requirements, subject to material, size and production availability.
