THROUGH-HARDENED HIGH-CARBON STEEL

AISI 1085 High Carbon Steel Balls

High-hardness, wear-resistant carbon steel balls for semi-precision bearings, slides, casters, conveyors and industrial mechanisms.

Request a Quote ↗Contact SDBALLS U.S.

AISI 1085 High Carbon Steel Balls supplied by SDBALLS — PRODUCT REFERENCE / FINAL SPECIFICATION BY QUOTATION

PRODUCT OVERVIEW

What are aisi 1085 high carbon steel balls?

AISI 1085 balls are through-hardened high-carbon steel spheres designed for higher hardness and wear resistance than low-carbon case-hardened balls.

They are an economical magnetic option for repeated rolling or sliding contact in non-corrosive environments, but they are not a substitute for AISI 52100 in fatigue-critical precision bearings.

TECHNICAL SPECIFICATIONS

Start with measurable requirements.

Values below are product-family references. The quotation, drawing, agreed standard and inspection plan control the final supply specification.

Technical itemReference specification

MaterialAISI 1085 through-hardened carbon steel

Diameter Range1.5–50.8 mm typical

Precision GradeG40, G48, G80, G100, G200, G500 and G1000 typical

ToleranceControlled by the agreed precision grade, drawing or purchase specification

HardnessHRC 59–66 typical after heat treatment

DensityApprox. 7.85 g/cm³

Surface FinishGround, polished, blackened, plated or oiled

Roundness / SphericityControlled according to the agreed precision grade and inspection method

Temperature ResistanceApplication, load, atmosphere and material-grade dependent

Chemical ResistanceNot corrosion resistant; surface protection required

PackagingBulk, small-quantity, container, bag, carton, export pallet or customized packing

MagnetismMagnetic

PRODUCT SELECTION GUIDANCE

Compare materials before substituting.

Material selection affects load, wear, corrosion, temperature, precision, service life and total program cost.

Material optionPrimary advantageLimitationBest fit

AISI 1085 high carbonHigh through-hardness and wear resistanceLow corrosion resistanceSemi-precision motion, casters and slides

Case-hardened 1010/1015Lower cost and tougher soft coreLower overall hardnessGeneral hardware and high-volume mechanisms

AISI 52100 chrome steelSuperior bearing precision and fatigue performanceHigher costPrecision bearings and high-cycle rolling

420C / 440C stainlessHardness with improved mild corrosion behaviorHigher costWet or cleanliness-sensitive mechanisms

KEY PERFORMANCE FEATURES

Performance that purchasing teams can verify.

Through-hardened wear life

High hardness extends service in rolling, sliding and repeated-contact mechanisms.

Cost-performance balance

Provides a practical step up from low-carbon steel without moving to bearing steel.

Multiple precision levels

Commercial through semi-precision grades support hardware and motion requirements.

Surface protection options

Oiling, blackening or plating can be selected around storage and appearance needs.

TYPICAL APPLICATIONS

Specify the work the ball must perform.

Application names are starting points—not approval of universal suitability. Share the real medium, load, speed, pressure, temperature, life target and compliance needs.

Semi-precision bearings

Moderate-duty rolling systems where full bearing-steel fatigue performance is not required.

Furniture & bicycle components

Durable rolling elements for repetitive motion and load.

Slides, casters & conveyors

Wear-resistant balls for high-volume industrial and hardware mechanisms.

Locks & processing equipment

Agitators, locks, polishing and milling mechanisms for compatible environments.

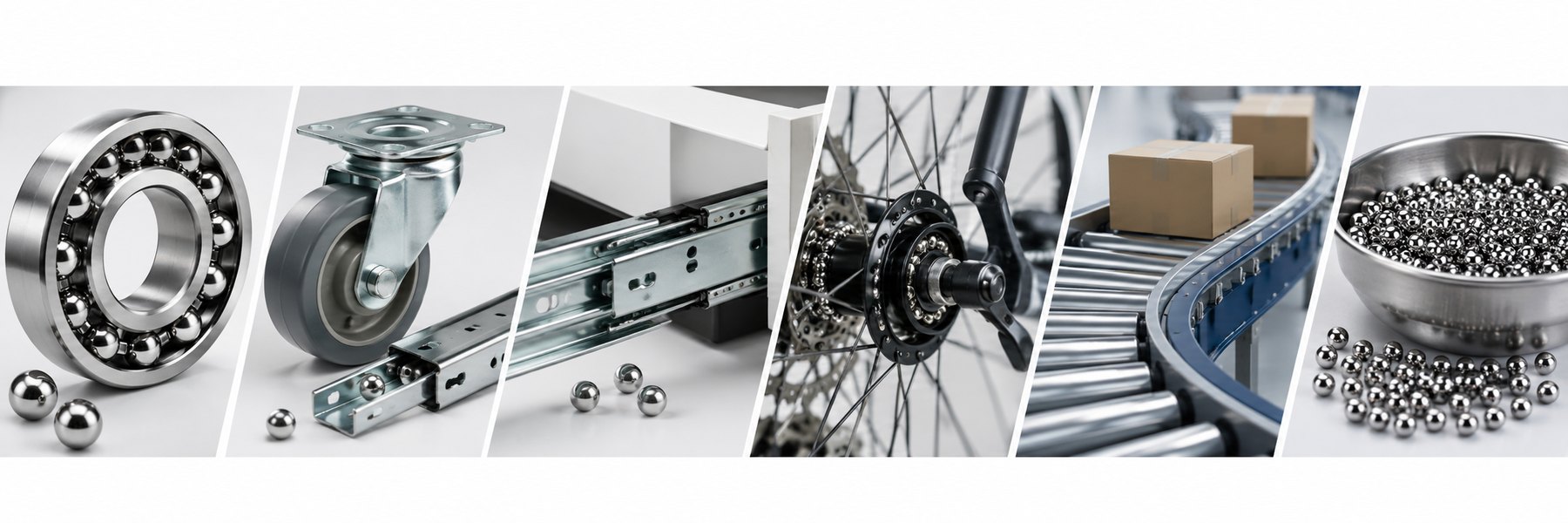

Typical applications for AISI 1085 High Carbon Steel Balls — REPRESENTATIVE APPLICATION ENVIRONMENTS

QUALITY & DOCUMENTATION

Build the evidence into the purchase order.

Document requirements should be defined before quotation so the inspection method, sampling level, traceability and external testing can be planned correctly.

Material verification against the agreed steel grade and purchase specification
Diameter, tolerance and precision-grade inspection using calibrated equipment
Hardness and heat-treatment verification when applicable
Surface finish and visual-defect inspection to the agreed acceptance criteria
Roundness / sphericity and lot-consistency inspection for the specified precision level
Batch traceability through heat, lot and controlled production records
Material certificates and inspection reports available when agreed before quotation
RoHS, REACH, PPAP-style records and third-party testing by project agreement

PACKAGING OPTIONS

Protect precision through delivery.

Final packing depends on material, diameter, surface sensitivity, order weight, storage time and destination.

Small-quantity packing

Size-separated bags, bottles, trays or protected containers for samples, repair and qualification lots.

Bulk industrial packing

Inner bags, cartons, pails or steel drums selected around diameter, total weight and handling method.

Surface protection

Clean/dry, passivated, lightly oiled or rust-preventive packing according to alloy and storage risk.

OEM & export packing

Customer labels, counted packs, batch separation, export pallets and line-ready packaging by agreement.

Supported formats: bulk packaging · small-quantity packaging · plastic containers · bags · cartons · export pallets · customized packaging.

SMALL QUANTITY & SAMPLE ORDERS

Validate before you scale.

SDBALLS Industry Corp. supports North American customers with sample quantities, prototype requirements, testing programs and specialty ball inquiries.

Send diameter, grade, hardness, coating or oil requirement, load, cycle target, quantity and corrosion environment for sample review.

PrototypeTestingRepairR&DSmall batch production

Request Samples ↗Contact U.S. Support

PRODUCT FAQ

Answers for engineering and purchasing teams.

What sizes are available?

The main-site reference range is 1.5–50.8 mm. Other sizes require production confirmation.

What precision grades can be supplied?

Typical grades include G40, G48, G80, G100, G200, G500 and G1000.

How corrosion resistant is this material?

AISI 1085 is not stainless. Use controlled storage, protective oil, plating or another material for wet and corrosive service.

Are these steel balls magnetic?

Yes. AISI 1085 high-carbon steel balls are magnetic.

Can SDBALLS provide material certificates and inspection reports?

Yes. Define the required material certificate, dimensional report, hardness report, compliance record, PPAP-style documentation or third-party test before quotation so the correct inspection plan can be priced.

Do you support samples and small-quantity orders?

Yes. SDBALLS Industry Corp. supports North American buyers with samples, prototype quantities, repair lots and small-batch programs where the requested size, grade and material condition are available.
