ALUMINA / Al₂O₃ CERAMIC

Aluminum Oxide Ceramic Balls

Hard, electrically insulating alumina ceramic balls for grinding, valves, pumps, metering and chemically demanding industrial systems.

Request a Quote ↗Contact SDBALLS U.S.

Alumina ceramic balls for grinding chemical equipment wear and electrical insulation — PRODUCT REFERENCE / FINAL SPECIFICATION BY QUOTATION

PRODUCT OVERVIEW

What are aluminum oxide ceramic balls?

Aluminum oxide balls are advanced ceramic spheres made from alumina, typically in purity grades selected around hardness, wear, chemical stability and cost. They are non-magnetic, electrically insulating and resistant to many corrosive environments.

Alumina purity, microstructure and porosity directly affect wear, contamination and strength. Buyers should specify purity, diameter, precision, density and application rather than relying on the word “ceramic” alone.

TECHNICAL SPECIFICATIONS

Start with measurable requirements.

Values below are product-family references. The quotation, drawing, agreed standard and inspection plan control the final supply specification.

Technical itemReference specification

MaterialAluminum oxide / Al₂O₃ ceramic; purity grade by application

Diameter Range1–50.8 mm reference precision range; larger grinding media by review

Precision GradeISO G5–G40 reference range for precision products

ToleranceControlled by the agreed precision grade, drawing or purchase specification

HardnessTypically HV 1200+; purity and process dependent

DensityApprox. 3.6–3.9 g/cm³, purity dependent

Surface FinishPrecision polished or grinding-media finish

Roundness / SphericityControlled according to the agreed precision grade and inspection method

Temperature ResistanceApplication, load, atmosphere and material-grade dependent

Chemical ResistanceStrong general corrosion resistance; exact media compatibility required

PackagingBulk, small-quantity, container, bag, carton, export pallet or customized packing

Electrical behaviorExcellent electrical insulation and non-magnetic

Temperature behaviorHigh-temperature capable; load, atmosphere and thermal cycle require review

PRODUCT SELECTION GUIDANCE

Compare materials before substituting.

Material selection affects load, wear, corrosion, temperature, precision, service life and total program cost.

Material optionPrimary advantageLimitationBest fit

Alumina / Al₂O₃Hard, insulating, chemically stable and cost effectiveLower toughness than zirconia and silicon nitrideGrinding, valves, pumps and insulation

Zirconia / ZrO₂Higher toughness, density and low-contamination wearHigher cost and massFine grinding and valve service

Silicon nitride / Si₃N₄Low density, high speed and thermal-shock performanceHigher material costHybrid bearings and spindles

Stainless steelTough, machinable and familiarConductive and lower hardnessGeneral valves and mechanical components

KEY PERFORMANCE FEATURES

Performance that purchasing teams can verify.

High hardness

Supports abrasive wear resistance and grinding performance.

Electrical insulation

Non-conductive ceramic construction suits electrical and instrument systems.

Chemical stability

Useful in many process fluids after exact compatibility review.

Purity options

Material purity can be selected around wear, contamination and budget priorities.

TYPICAL APPLICATIONS

Specify the work the ball must perform.

Application names are starting points—not approval of universal suitability. Share the real medium, load, speed, pressure, temperature, life target and compliance needs.

Grinding & dispersion

Media for minerals, coatings, ceramics and other contamination-controlled processes.

Chemical valves & pumps

Wear and sealing elements for compatible fluid systems.

Electrical equipment

Insulating spheres, spacers and non-magnetic components.

Metering & instrumentation

Hard precision balls for flow, dosing and reference mechanisms.

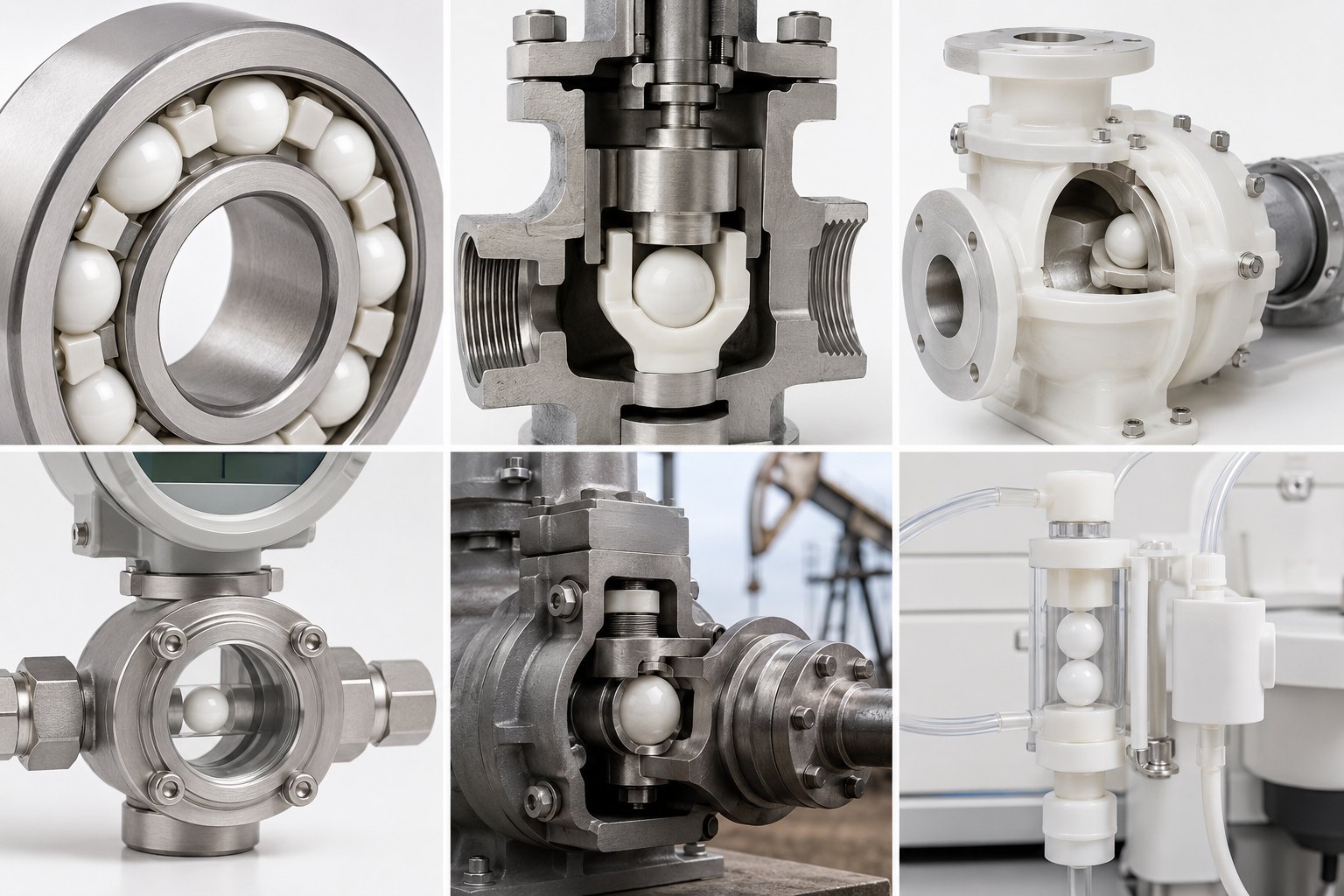

Typical applications for Aluminum Oxide Ceramic Balls — REPRESENTATIVE APPLICATION ENVIRONMENTS

QUALITY & DOCUMENTATION

Build the evidence into the purchase order.

Document requirements should be defined before quotation so the inspection method, sampling level, traceability and external testing can be planned correctly.

Material identity or alloy / ceramic grade verified against the agreed purchase specification
Diameter, tolerance and geometry inspected using the method appropriate to the ordered precision level
Hardness, density, wall thickness or coating hardness tested when applicable to the product
Surface condition, finish and visual limits checked against approved samples or drawings
Roundness / sphericity or roller geometry inspected when specified
Lot identification and batch traceability maintained through controlled records
Material certificates and inspection reports available when agreed before quotation
Third-party testing, compliance documents and customer inspection plans supported by agreement

PACKAGING OPTIONS

Protect precision through delivery.

Final packing depends on material, diameter, surface sensitivity, order weight, storage time and destination.

Individual protective cells

Separated trays or cells for larger, polished or high-precision ceramic balls.

Sample vials

Clearly labeled containers for qualification and laboratory quantities.

Rigid bulk containers

Cushioned, movement-controlled containers for production quantities.

Clean customer packing

Cleanliness, count, label and pallet requirements coordinated before production.

Supported formats: bulk packaging · small-quantity packaging · plastic containers · bags · cartons · export pallets · customized packaging.

SMALL QUANTITY & SAMPLE ORDERS

Validate before you scale.

SDBALLS Industry Corp. supports North American customers with sample quantities, prototype requirements, testing programs and specialty ball inquiries.

State alumina purity, diameter, grade, quantity, process medium, operating temperature and acceptable contamination. Samples support wear, compatibility and grinding trials.

PrototypeTestingRepairR&DSmall batch production

Request Samples ↗Contact U.S. Support

PRODUCT FAQ

Answers for engineering and purchasing teams.

Which alumina purity should I specify?

Purity depends on wear, contamination, strength, chemistry and cost. Share the application and acceptable contamination so a suitable grade can be proposed.

Are alumina balls electrically insulating?

Yes, alumina is an excellent electrical insulator, subject to grade, temperature and system design.

Can alumina balls be used for grinding?

Yes. Select purity, density, ball size and mill compatibility around product contamination and energy requirements.

How does alumina compare with zirconia?

Alumina is generally more economical and lighter; zirconia is denser and tougher with strong low-contamination wear performance.

Can you provide material certificates and inspection reports?

Yes. State the required certificate, inspection method, sampling plan and report format before quotation so documentation can be included in the supply plan.

Do you support samples and small-quantity orders?

Yes. SDBALLS Industry Corp. supports North American prototype, qualification, repair, R&D and small-batch requirements, subject to material, size and production availability.
