C26000 / C27000 / C28000 COPPER ALLOY

Brass Balls

Machinable, non-magnetic brass balls for valves, pumps, instruments, electrical hardware, decoration and custom assemblies.

Request a Quote ↗Contact SDBALLS U.S.

Brass Balls supplied by SDBALLS — PRODUCT REFERENCE / FINAL SPECIFICATION BY QUOTATION

PRODUCT OVERVIEW

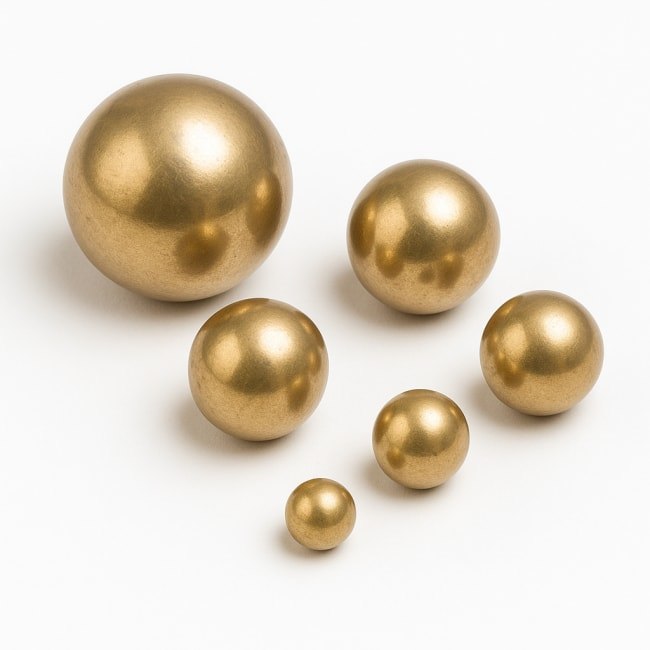

What are brass balls?

Brass balls are copper-zinc alloy spheres supplied in controlled alloy grades for applications requiring corrosion resistance, machinability, electrical conductivity and a distinctive gold appearance.

Alloy selection changes hardness, forming behavior, conductivity and corrosion performance. Specify the exact brass grade, environment and dimensional requirement rather than accepting a generic brass description.

TECHNICAL SPECIFICATIONS

Start with measurable requirements.

Values below are product-family references. The quotation, drawing, agreed standard and inspection plan control the final supply specification.

Technical itemReference specification

MaterialC26000 / C27000 / C28000 brass or agreed equivalent

Diameter Range1–150 mm reference range

Precision GradeG100–G1000 reference grades; custom-machined options by drawing

ToleranceControlled by the agreed precision grade, drawing or purchase specification

HardnessApprox. HRB 75–95, alloy and condition dependent

DensityApprox. 8.49 g/cm³

Surface FinishPolished, satin, plated or machined by project

Roundness / SphericityControlled according to the agreed precision grade and inspection method

Temperature ResistanceApplication, load, atmosphere and material-grade dependent

Chemical ResistanceGood in many atmospheric and water services; ammonia and dezincification risk require review

PackagingBulk, small-quantity, container, bag, carton, export pallet or customized packing

MagnetismNon-magnetic

Special optionsThrough holes, threads, flats, plating and custom machining

PRODUCT SELECTION GUIDANCE

Compare materials before substituting.

Material selection affects load, wear, corrosion, temperature, precision, service life and total program cost.

Material optionPrimary advantageLimitationBest fit

BrassMachinable, non-magnetic, conductive and decorativeAlloy-specific dezincification and ammonia sensitivityValves, instruments and electrical hardware

Phosphor bronzeBetter wear, fatigue and spring behaviorHigher material costMarine, electrical and wear components

Aluminum bronzeHigh strength and marine corrosion performanceHarder to machineMarine valves and heavy industry

Stainless steelHigher strength and broad corrosion optionsDifferent conductivity, magnetism and appearancePrecision and hygienic systems

KEY PERFORMANCE FEATURES

Performance that purchasing teams can verify.

Excellent machinability

Supports holes, threads, flats and drawing-specific custom geometry.

Non-magnetic conductivity

Useful for electrical, instrument and sensor assemblies.

Valve-compatible options

Selected grades serve water, fuel and pneumatic mechanisms after chemistry review.

Decorative finish

Polished gold appearance supports architectural and consumer products.

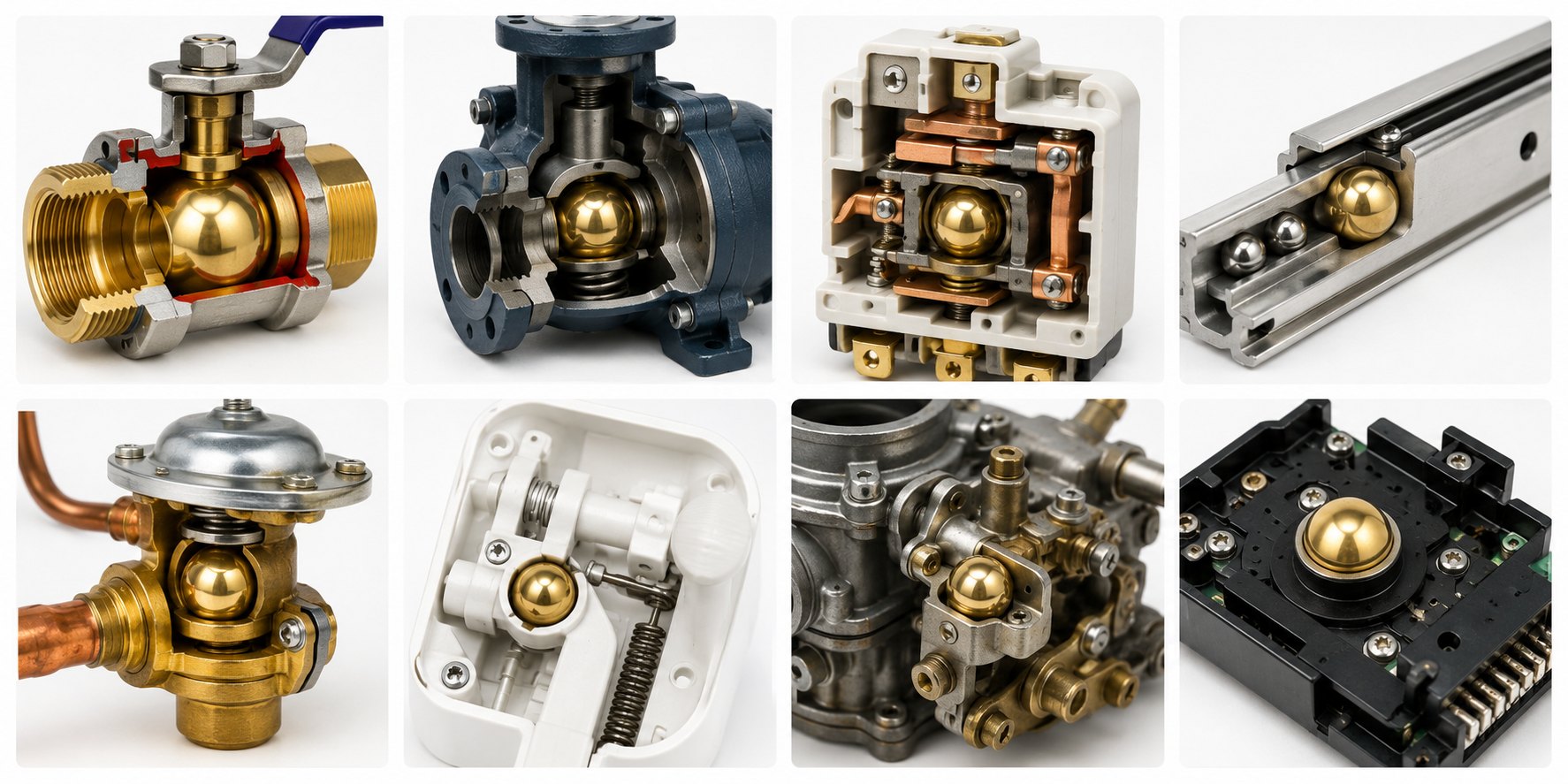

TYPICAL APPLICATIONS

Specify the work the ball must perform.

Application names are starting points—not approval of universal suitability. Share the real medium, load, speed, pressure, temperature, life target and compliance needs.

Valves & pumps

Check balls, control elements and low-friction moving components.

Instrumentation

Non-magnetic moving parts, weights and precision mechanisms.

Electrical components

Contacts, conductive spheres and custom hardware.

Decorative assemblies

Polished architectural, furniture and consumer components.

Typical applications for Brass Balls — REPRESENTATIVE APPLICATION ENVIRONMENTS

QUALITY & DOCUMENTATION

Build the evidence into the purchase order.

Document requirements should be defined before quotation so the inspection method, sampling level, traceability and external testing can be planned correctly.

Material identity or alloy / ceramic grade verified against the agreed purchase specification
Diameter, tolerance and geometry inspected using the method appropriate to the ordered precision level
Hardness, density, wall thickness or coating hardness tested when applicable to the product
Surface condition, finish and visual limits checked against approved samples or drawings
Roundness / sphericity or roller geometry inspected when specified
Lot identification and batch traceability maintained through controlled records
Material certificates and inspection reports available when agreed before quotation
Third-party testing, compliance documents and customer inspection plans supported by agreement

PACKAGING OPTIONS

Protect precision through delivery.

Final packing depends on material, diameter, surface sensitivity, order weight, storage time and destination.

Anti-tarnish inner packing

Sealed bags or protective paper selected for copper-alloy surface preservation.

Small-lot containers

Labeled bags, vials or trays for prototypes, repair and distributor orders.

Cartons, pails & drums

Industrial packing selected by diameter, total weight and handling method.

Customer-specific packing

Counted quantities, private labels, export pallets and corrosion protection by agreement.

Supported formats: bulk packaging · small-quantity packaging · plastic containers · bags · cartons · export pallets · customized packaging.

SMALL QUANTITY & SAMPLE ORDERS

Validate before you scale.

SDBALLS Industry Corp. supports North American customers with sample quantities, prototype requirements, testing programs and specialty ball inquiries.

Specify alloy, diameter, grade, environment, surface, machining and quantity. Samples support seat, conductivity, tarnish and assembly trials.

PrototypeTestingRepairR&DSmall batch production

Request Samples ↗Contact U.S. Support

PRODUCT FAQ

Answers for engineering and purchasing teams.

Which brass alloy should I specify?

C26000, C27000 and C28000 differ in zinc content and performance. Select against machining, corrosion, hardness and regulatory needs.

Are brass balls magnetic?

Brass is generally non-magnetic, although trace response can depend on contamination, plating or adjacent components.

Can brass balls be threaded or drilled?

Yes. Brass is highly machinable and supports threaded holes, through holes, flats and other custom features.

Will brass tarnish?

Yes, exposed brass can darken. Surface protection, plating, sealed packing and the service environment influence appearance.

Can you provide material certificates and inspection reports?

Yes. State the required certificate, inspection method, sampling plan and report format before quotation so documentation can be included in the supply plan.

Do you support samples and small-quantity orders?

Yes. SDBALLS Industry Corp. supports North American prototype, qualification, repair, R&D and small-batch requirements, subject to material, size and production availability.
